How to use
Connect the same screen device to the home wifi: (IOS system)
1. Connect the same screen device to the TV and power on, and display the manual interface.
2. Use your mobile phone to connect to the same screen device, open the settings of the mobile phone to enter the network settings, and connect to the SSID and password of the same screen device. salange
3. Open any browser, such as UC browser, enter the IP URL of the same screen device, select wifi AP after entering, and search for pairing with the home wifi.
The pairing is completed after the connection is successful.
After completing the successful pairing of the same screen device with the home wifi↓↓↓
How to connect a mobile phone to a TV？
1. When the same screen device is already connected to WiFi, please turn on the AirPlay mirroring function of your IOS phone and connect to the same screen device to use it. salange
2.When the same screen device is not connected to the WiFi network, turn on the wifi setting function of the mobile phone, select the wifi of the same screen device and connect, and then turn on the AirPlay mirroring function of the mobile phone to connect to the same screen device to use.
Description:

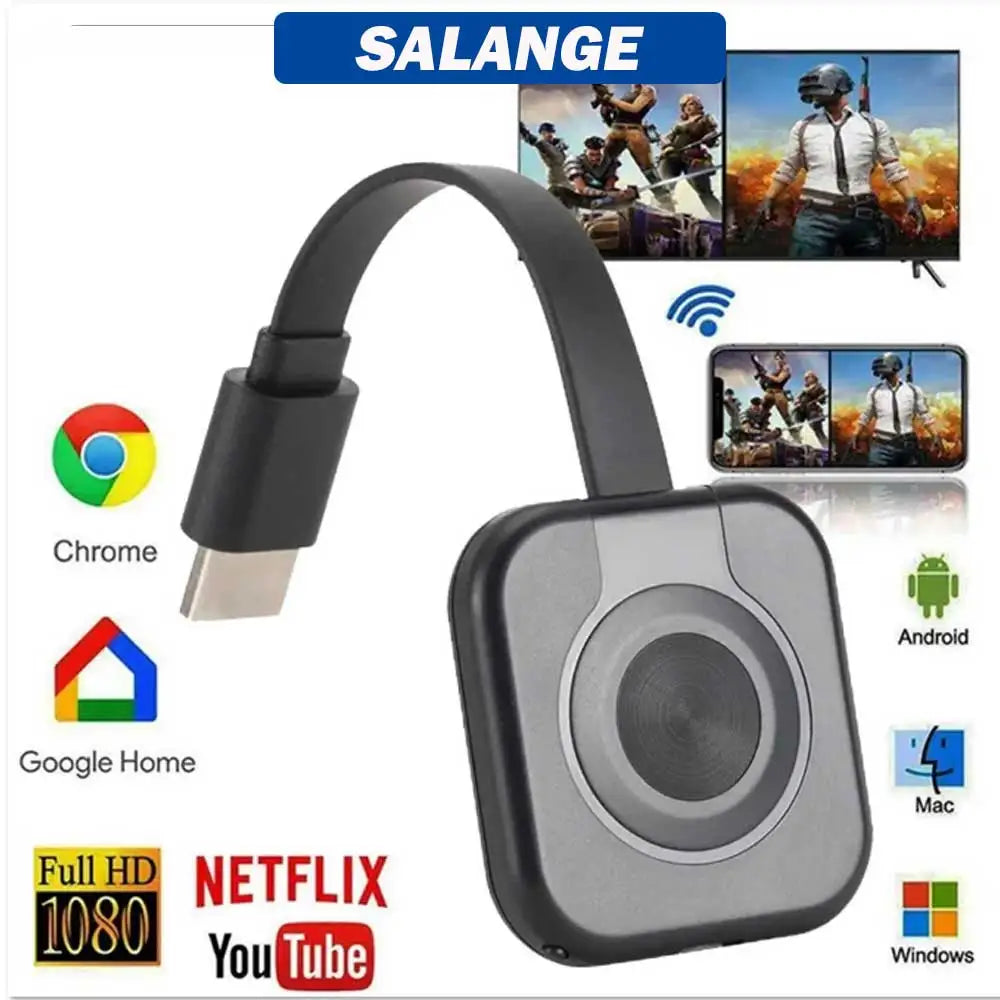

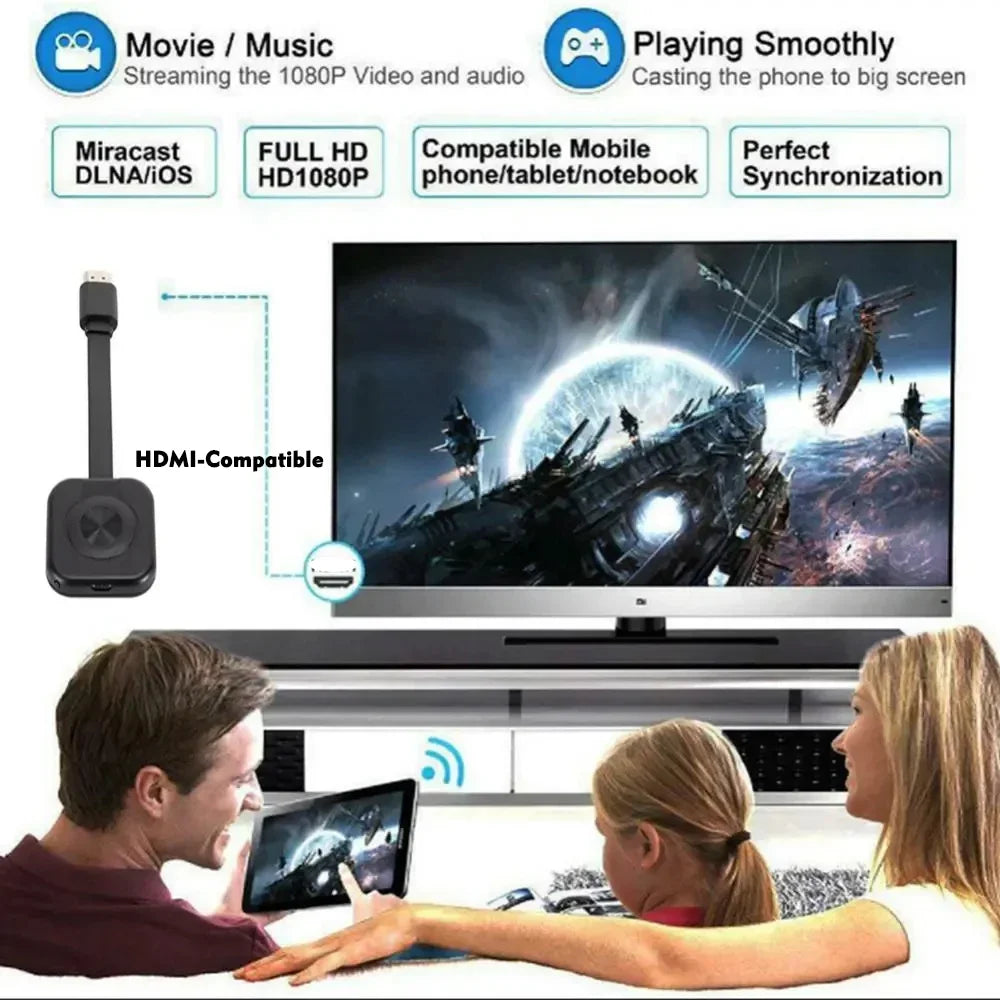

Support 1080P, you can connect a PC, smartphone, or For iPad to a TV or projector. Whatever you see on your mobile device's display, you can mirror it onto the HDTV or projector, create your exclusive cinema, and enjoy different audio-visual feasts
-Broad compatibility
Compatible with Android 4.2, for Mac OS X 10.9, for iOS 7.0, for Windows 8.1. Play games or share photos and videos with your family on the big screen, without having to huddle around the tiny screen of a mobile device. Also, support multiple formats of photos, videos, and files, out of the shackles of cable, the meeting has become intelligent and efficient
-Small and light design

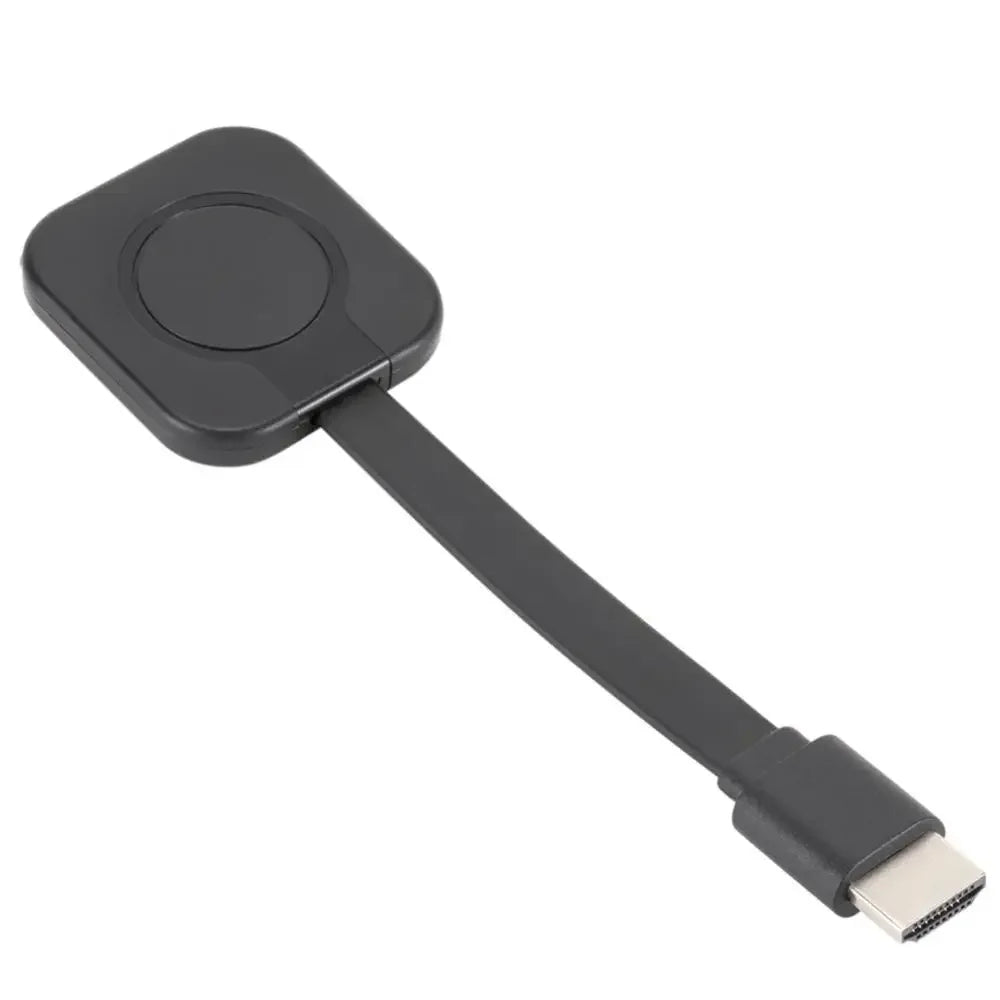

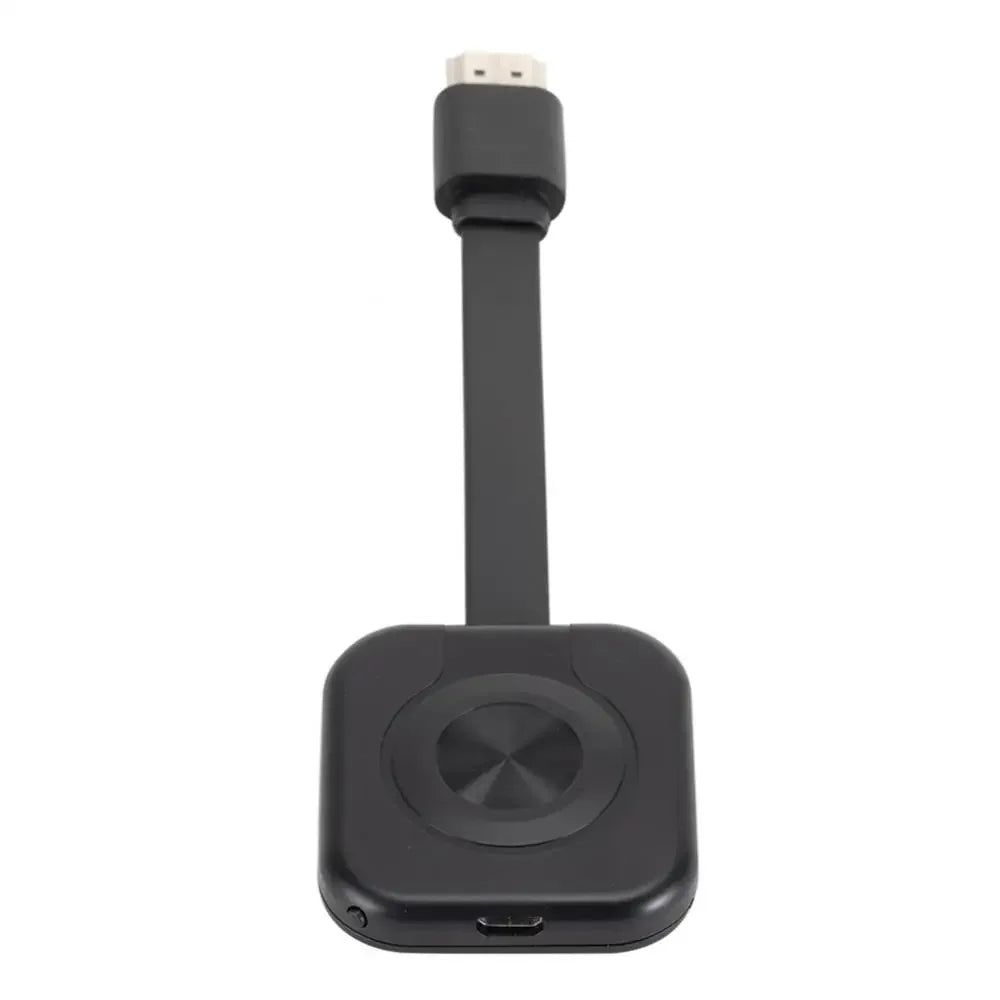

Rounded cute size, just like a cookie, with a magnet connected to the HDMI-compatible cable on the back, which saves space so that it is portable for you to use anytime and anywhere
-Easy connection
Just plug and play, no need for any other drivers, and with a switching button, you could switch between AirPlay mode and Miracast mode easily
Specifications:
1. wifi frequency: 2.4GHz
2. wifi range: 10m or less
3. wifi module/version: 8188ftv
4. resolution: 1920x1080 (maximum)
5. Operating system: Linux
6. CPU speed: 600 MHz
7. RAM: 128mb ddr3
8. internal flash: 128mb slc
9. video format: avi, divx, mkv, dat, vob, mpg, mpeg, mov, mp4, rm, rmvb, wmv
10. image format: jpeg, bmp
11. audio format: mp1 / 2/3, wma, ogg, wav, aac
12. file format: Adobe PDF, Microsoft Word / Excel / PowerPoint
